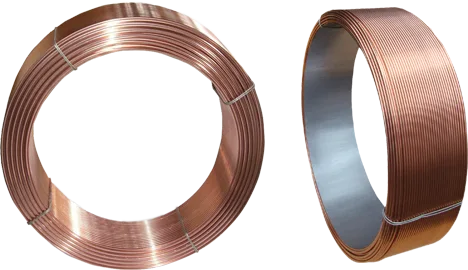

Coils 25 Kg to 30 Kg

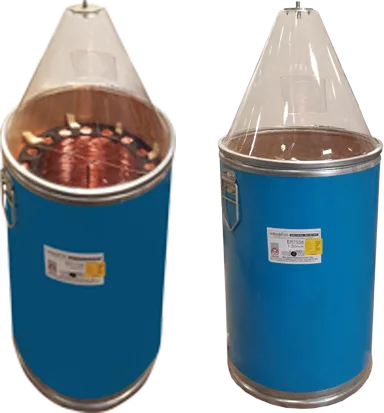

Fibre Drums 100 kg to 250 kg
| Wire Composition | |||||||
|---|---|---|---|---|---|---|---|
| Brand | Conformance | C% | Mn% | Si% | S% (max) | P% (max) | Mo% |
| SUN-ARC EL8 | AWS 5.17 EL8 | 0.10 max | 0.25 - 0.60 | 0.07 max | 0.030 | 0.030 | - |
| SUN-ARC EM12K | AWS 5.17 EM12K | 0.05 - 0.15 | O.S0 - 1.25 | 0.10 - 0.35 | 0.030 | 0.030 | - |
| SUN-ARC EH14 | AWS 5.17 EH14 | 0.10 - 0.20 | 1.70 - 2.20 | 0.10 max | 0.030 | 0.030 | - |
| SUN-ARC EA2 | AWS 5.23 EA2 | 0.05 - 0.17 | 0.95 - 1.35 | 0.20 max | 0.025 | 0.025 | 0.45 - 0.65 |
| Standard Sizes : Wire Diametres | ||||||||
|---|---|---|---|---|---|---|---|---|
| mm | 1.6 | 2.0 | 2.4 | 3.2 | 4.0 | 4.8 | ||
| inches | 0.062 | 0.078 | 0.094 | 0.125 | 0.156 | 0.188 | ||
